Portal ITX Wall Mount Water-cooling Case

In stock

Order processing time 1-2 days.

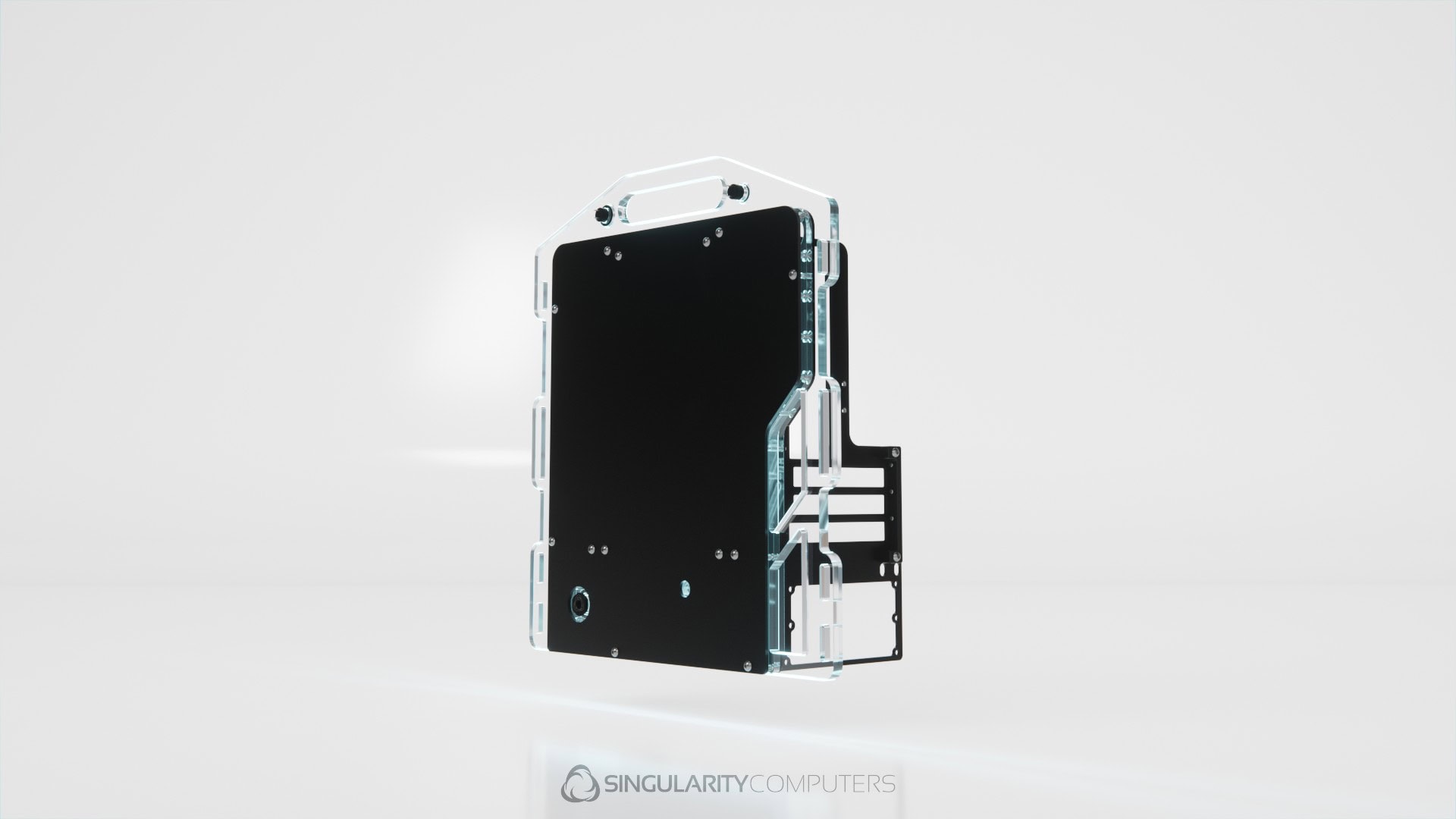

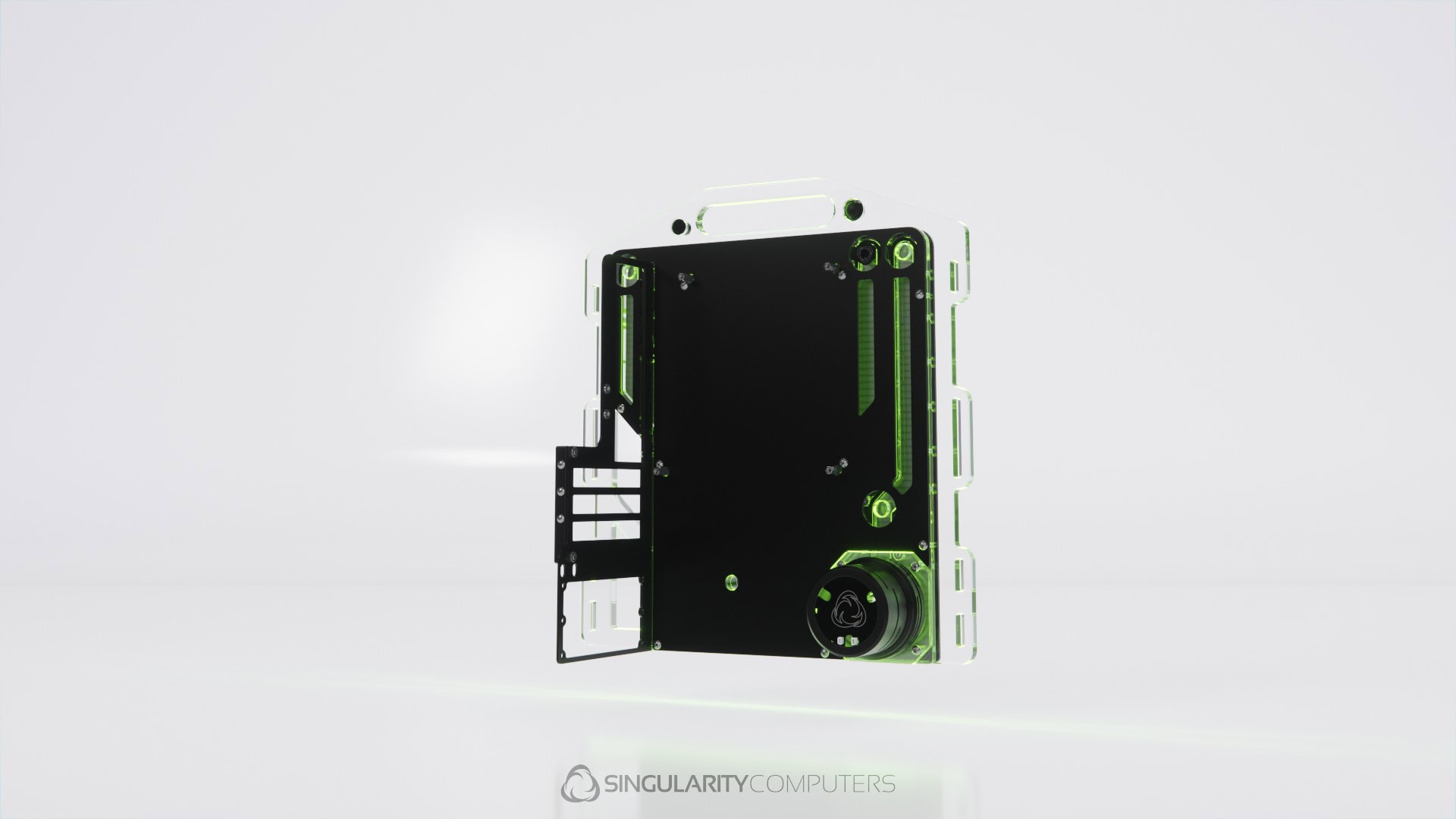

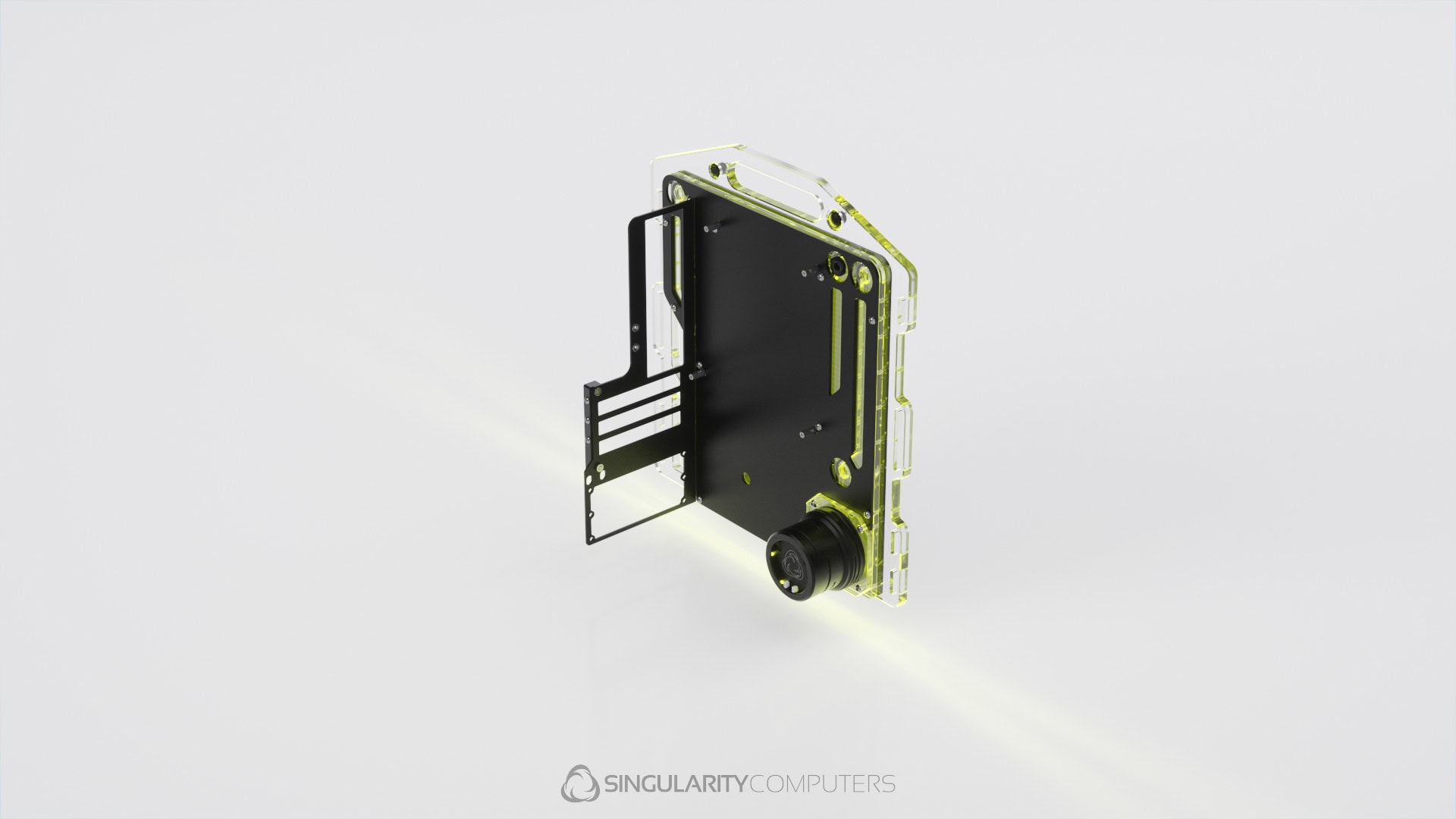

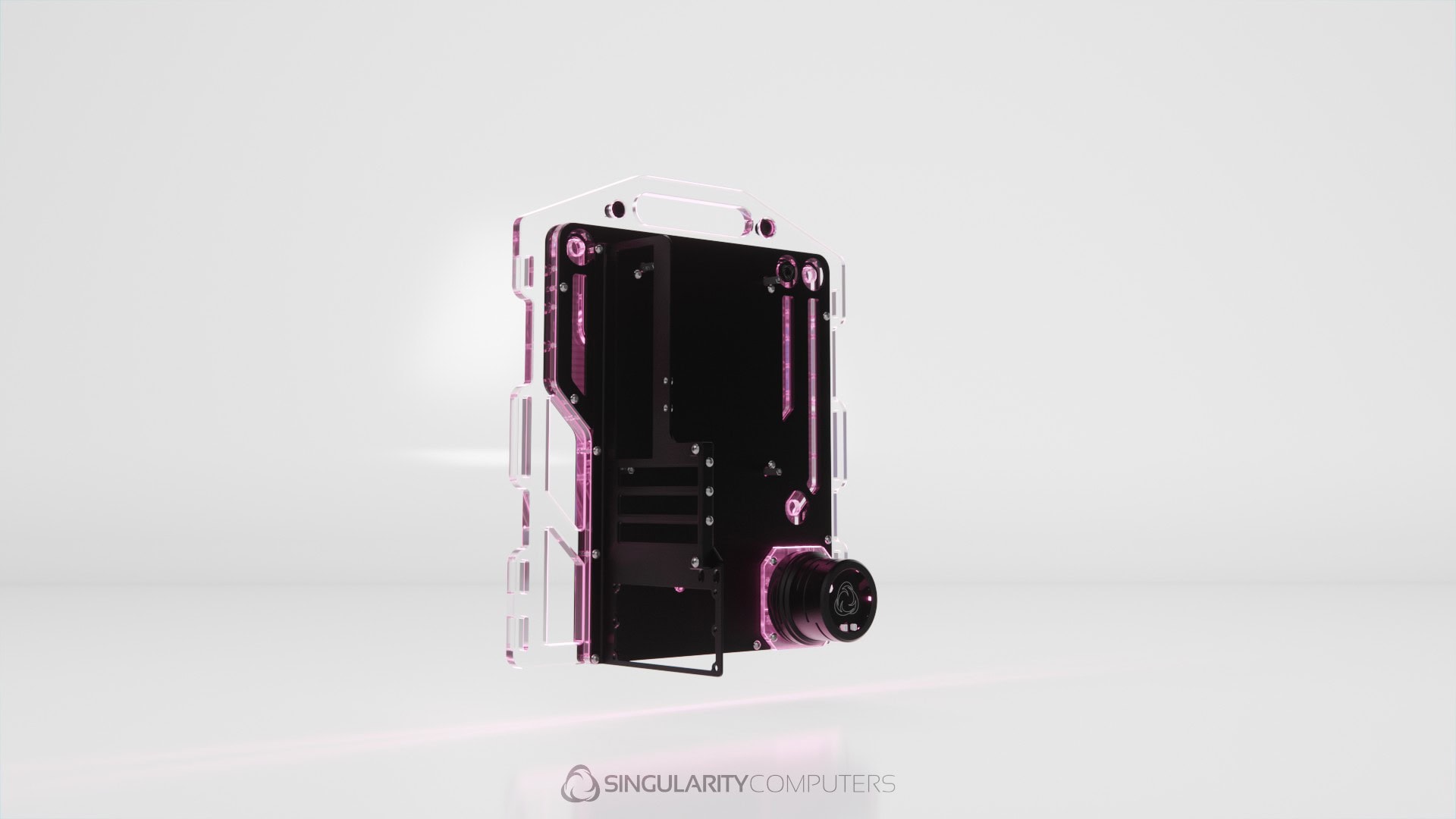

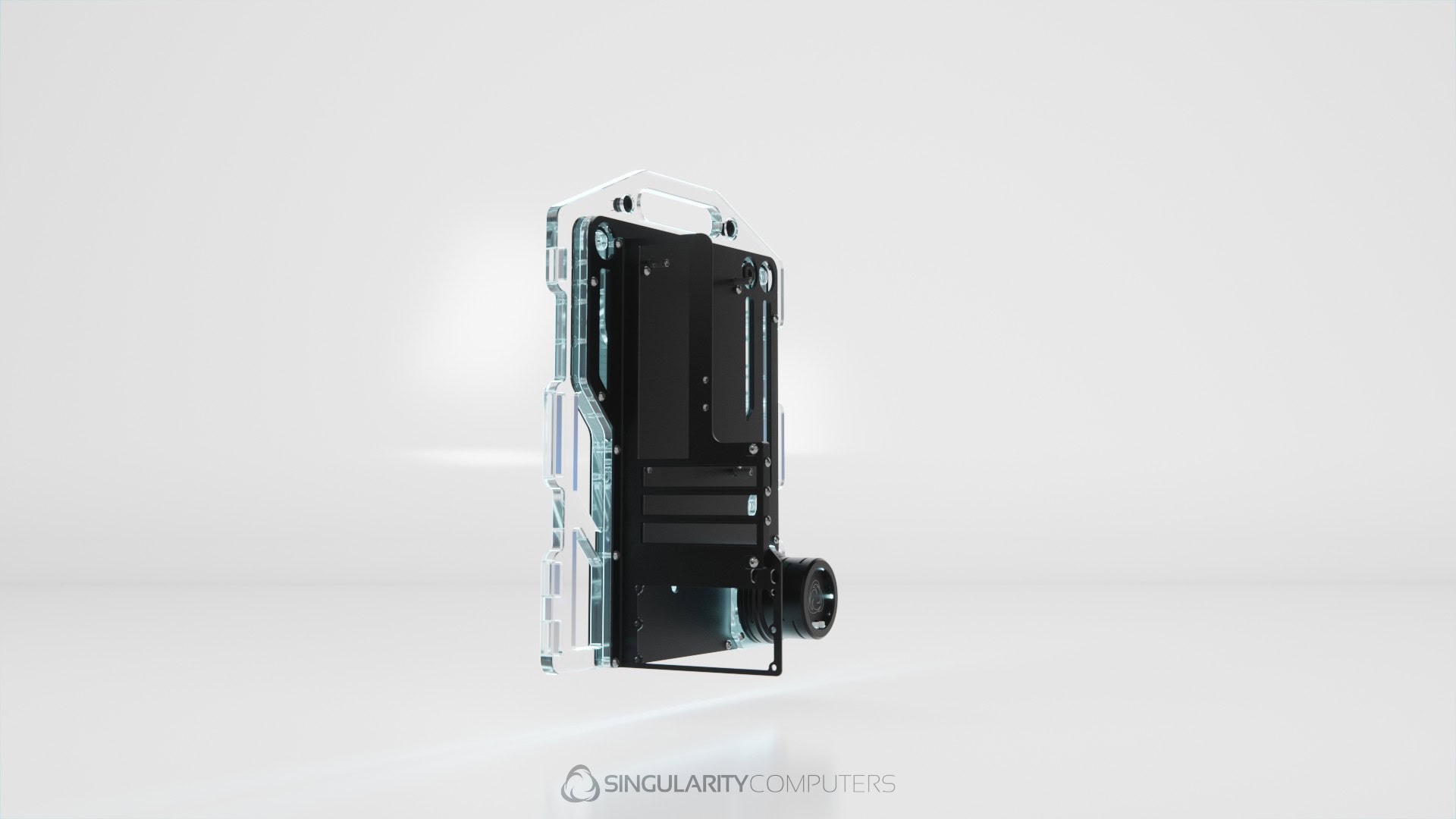

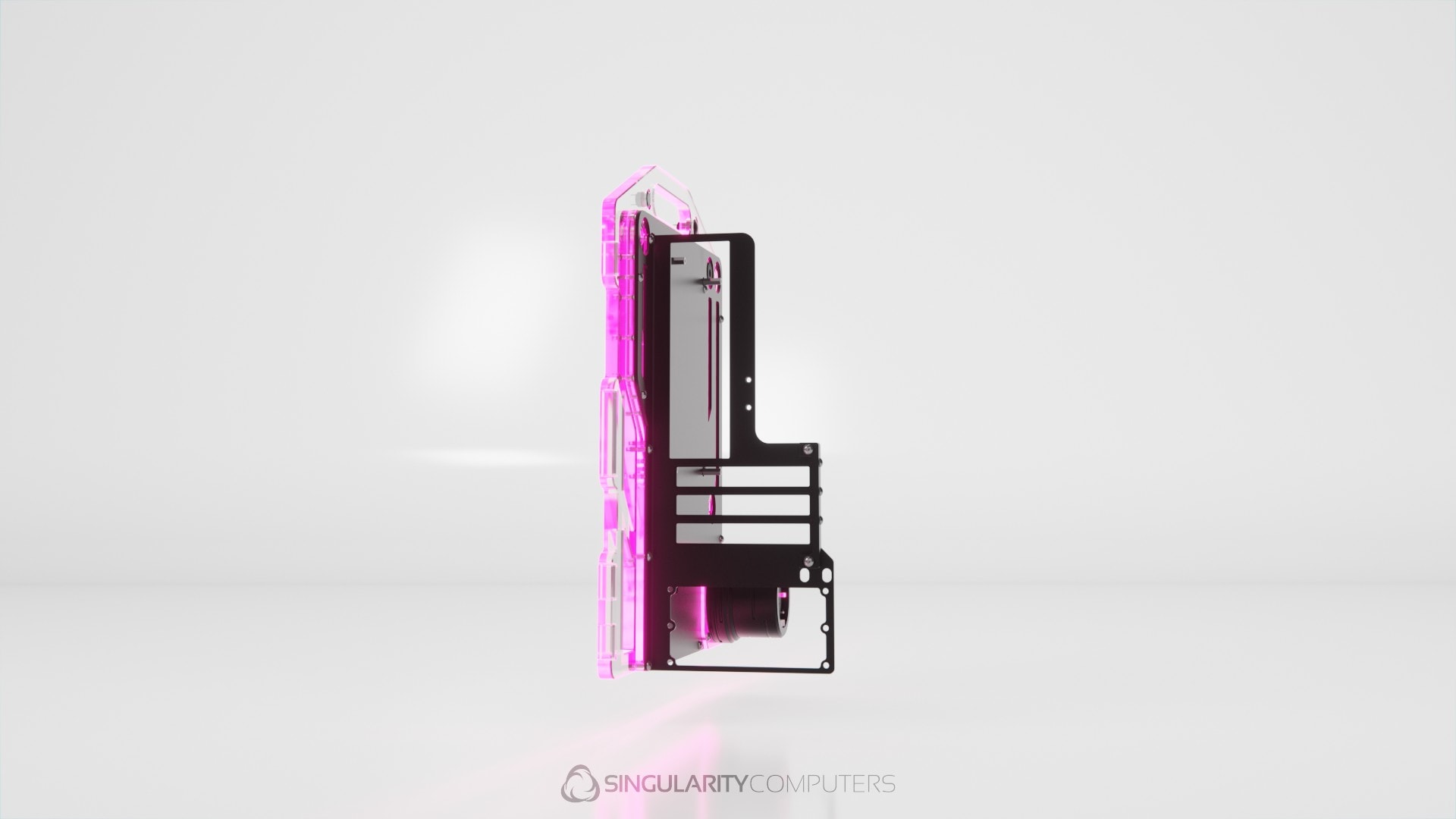

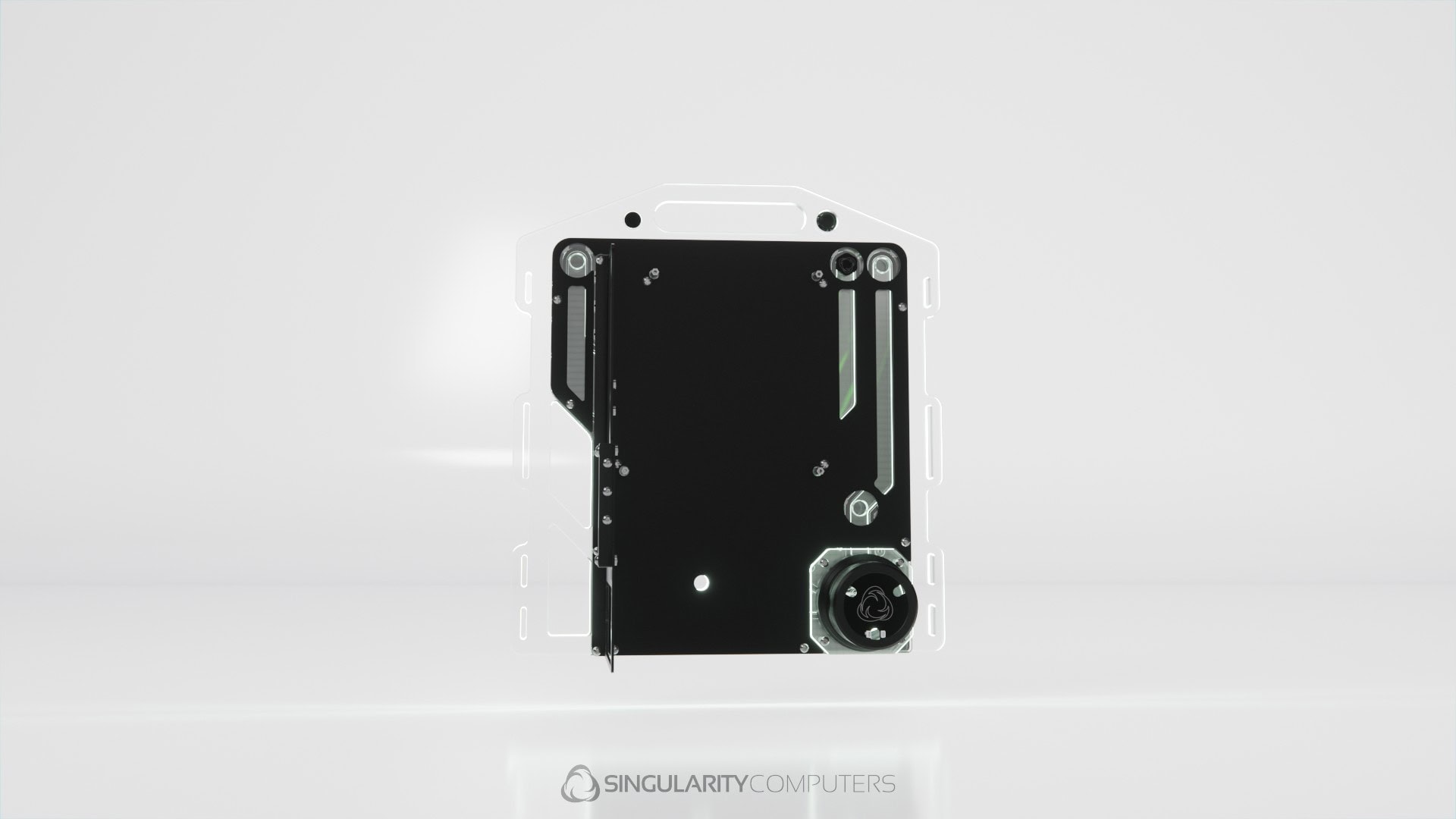

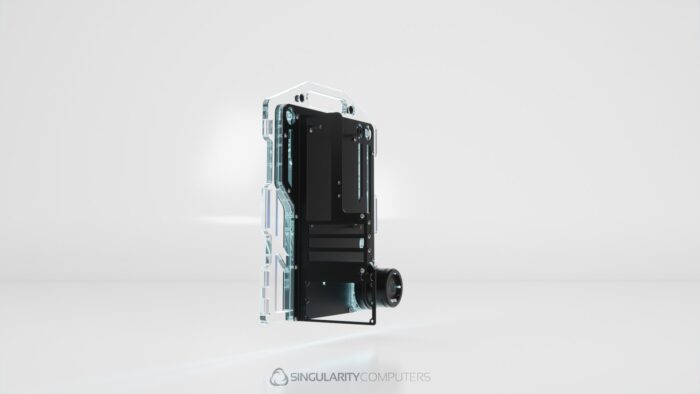

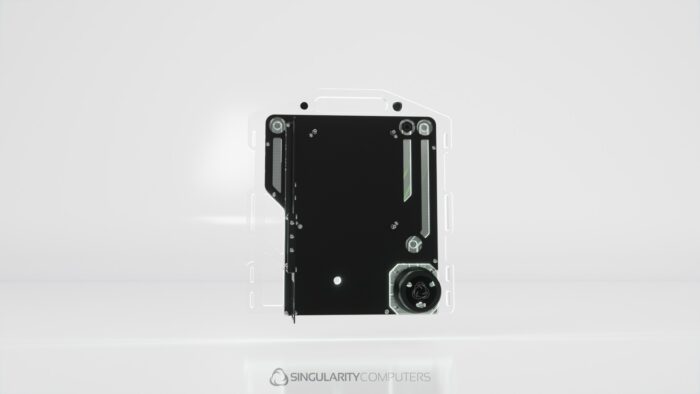

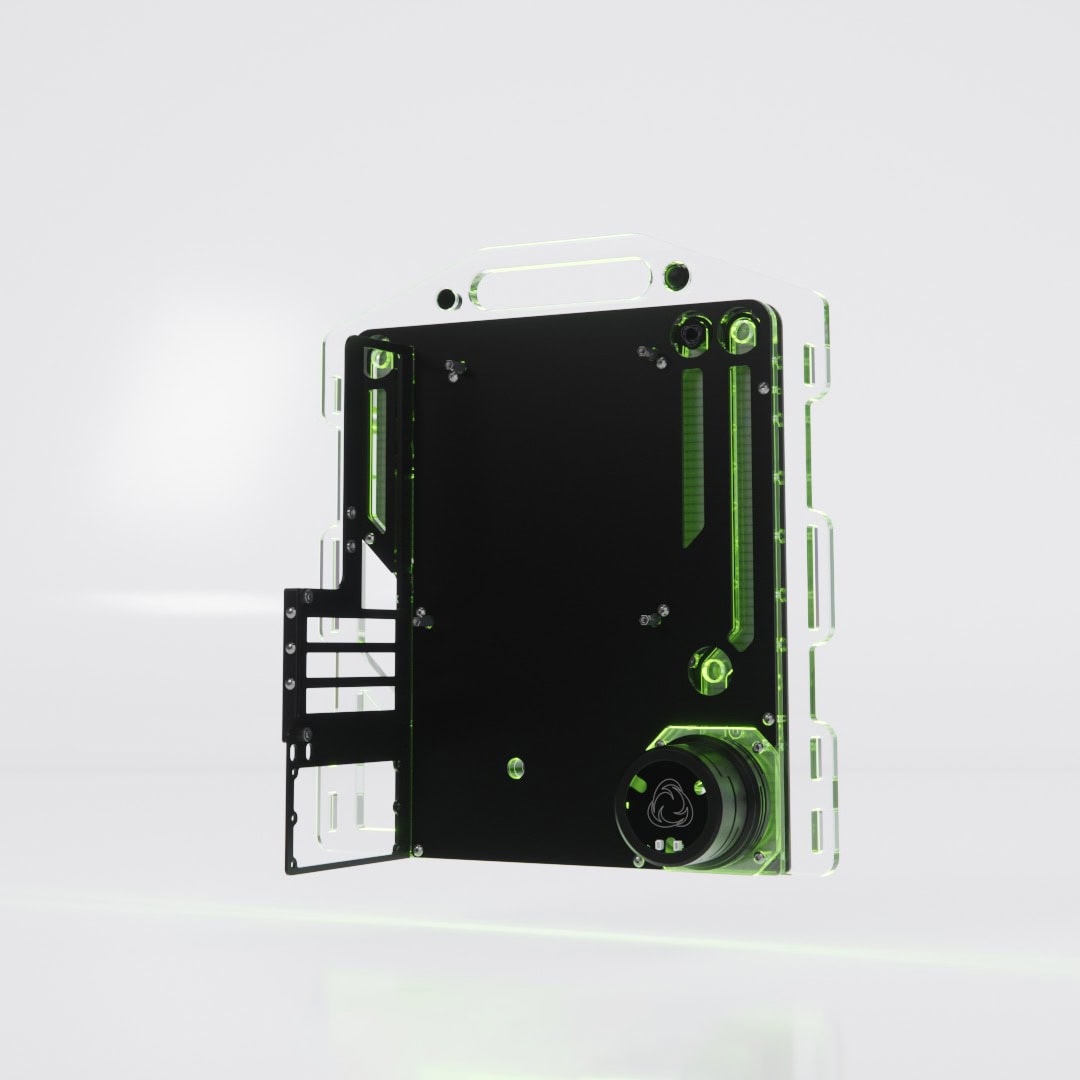

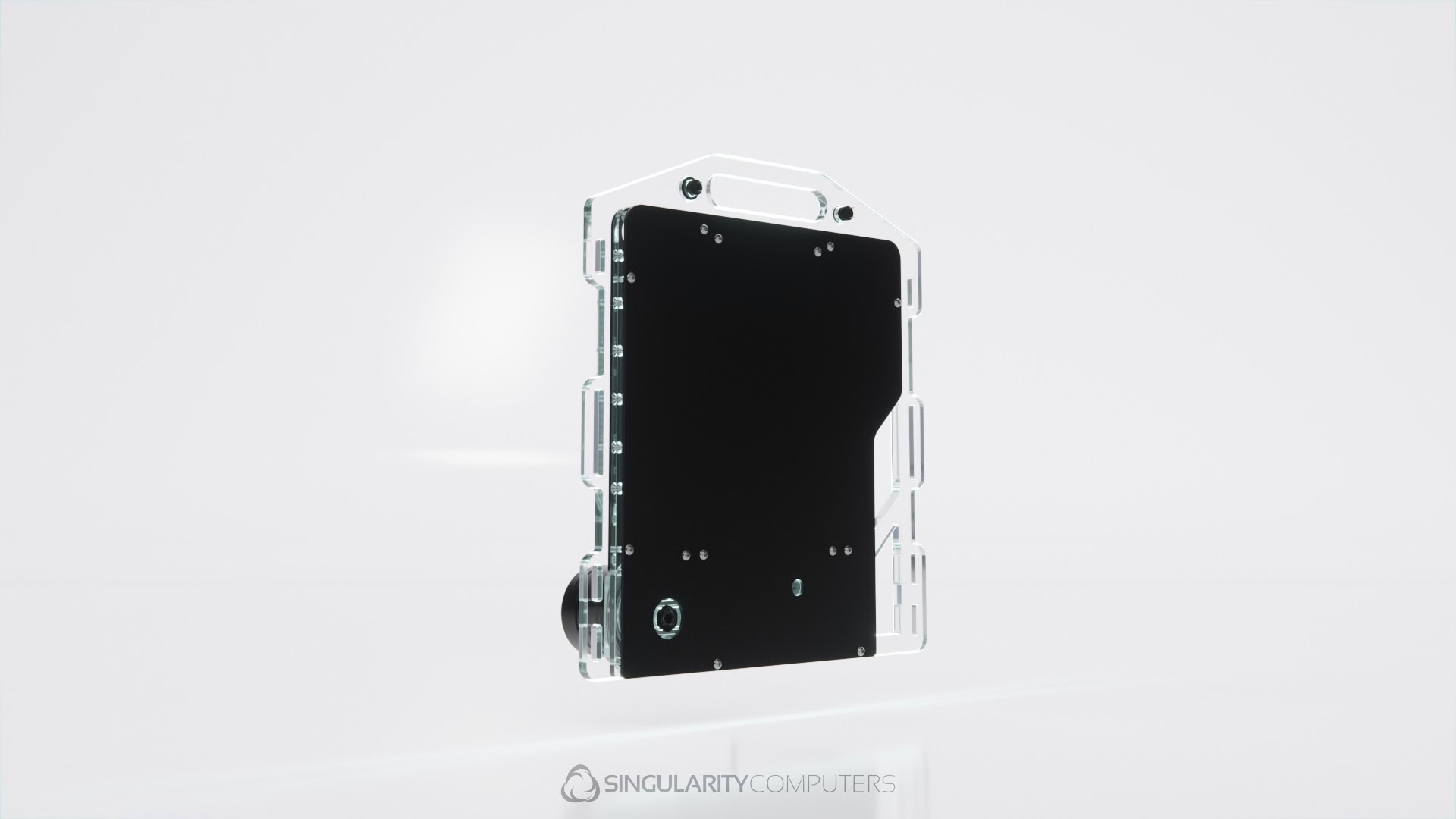

Portal ITX Wall Mount Water-cooling Case is an open wall mounted display case. It fits 2x 240mm or 280mm radiators, one on each side of the motherboard. There is no limitation to radiator or fan thickness. It has an integrated distribution plate with D5 pump top and reservoir and parts of the loop are also integrated for short and clean loop routing. The GPU mounts horizontally or vertically depending on the options selected below. Portal fits and ITX motherboard and SFX PSU. There is a PowerBoard option to improve cable management. Select Acrylic cover color and finish options below.

Note: PowerBoard coming soon.
Pump not included. Compatible with any D5 Pump.

Manuals

US$299.00

Select Case Colour Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$23.92 Silver Mirror +US$23.92 Gold Mirror +US$23.92 Satin Black

Rear, Top and Front Panel Covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select GPU Mount USD $29-99
Horizontal GPU Mount +US$29.00 Vertical GPU Mount +US$99.00 Horizontal GPU Mount(+US$29.00)

PCIE 5.0 Riser Cable & Vertical GPU Mount or CNC milled 6061 anodized aluminium Horizontal GPU mount.

Select D5 Retention Ring Colour (included)
None Black Silver Black

CNC milled anodized retention ring.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

CNC milled anodised pump cover with ARGB lights and Singularity Computers Logo.

D5 Pump (optional) USD $104
None Yes +US$104.00

D5 Pump 1500LPH 3.7m head pressure.

Stop Fitting x1 (optional) USD $4
None Yes +US$24.00

Include stop fittings for all extra ports aside from the inlet and outlet.

Mounting

VESA Mount (optional) USD $29
None Yes +US$29.00

Black powdercoated steel plate for wall mounting.

Additional options

Atlas Stand Set (optional) USD $119
None Yes +US$119.00

CNC machined black anodized 6061 aluminum legs and feet for standing the case on a desk if it will not be wall mounted.

  • 1x Portal ITX Wall Mount Water-cooling Case
    US$299.00

Subtotal excludes shipping & tax

Free shipping over US$2,000 | 30% Off Storewide With Coupon SCA30
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188003374 SKU: SC-PORT-WM-ITX Categories: ,

Description

Read More +Read Less − full description
Specifications ▼

Water-cooling Integration:
Reservoir, Pump Top, Pump Cover, Fill Port, Drain Port, Parts of water-cooling loop.
Ports: x12 G1/4” BSPP. 1x Fill Port. 1x Drain Port.
Motherboard Form Factor: E-ATX, ATX, Mini-DTX, Mini-ITX.
Case Dimensions: TBA.
Case Weight: TBA.
Packaged Dimensions: TBA. (Case is flat packed and requires partial assembly).
Packaged Weight: TBA.
Radiators: 240mm or 280mm x2 with unlimited thickness for radiators and fans.
Maximum GPU Length: Unlimited.
Maximum GPU Height: Unlimited.
Maximum CPU Cooler Height: Unlimited.
Maximum PSU Length: 250mm.
Front Panel I/O: No Front I/O. Vandal Switch 16mm Power & Reset.
Vertical GPU Mount: x1 with PCIE 5.0 Riser.
Materials: 6061 Aluminum Anodized. Cast Acrylic. Steel. PCB.
Manufacturing Process: CNC Mill, CNC Lathe, CNC Router, Folding Steel, PCB.
Assembly: Distribution Plate Assembled by Hand. Metal Components need to be assembled and attached to the distribution plate by the customer.
Testing/Validation: All Distribution Plates are factory pressure tested and precise fastener tension is applied.

Youtube video

Addon Information

Atlas Stand Set

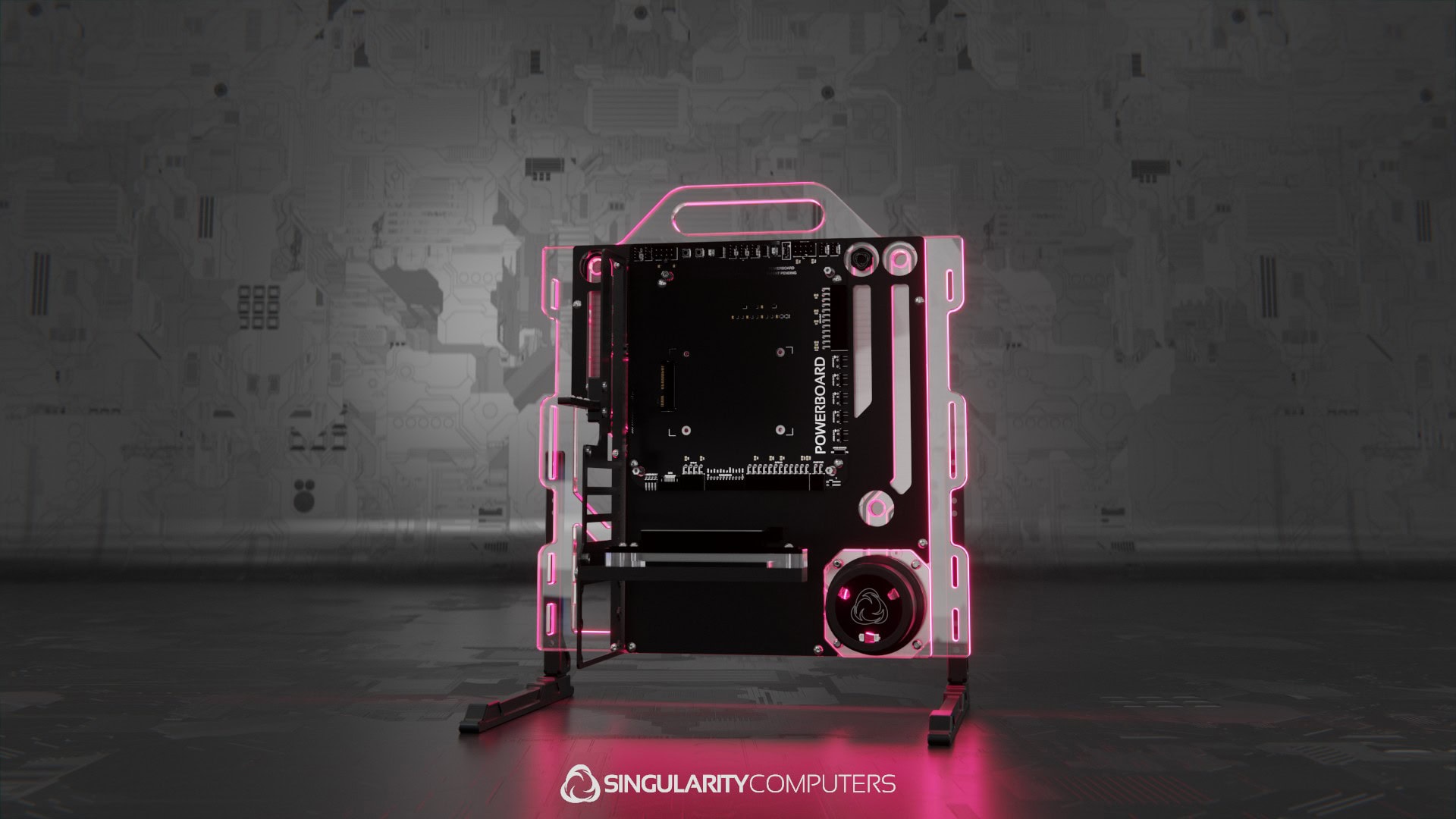

PowerBoard (Coming soon.)                                                                                                                                                                 VESA Mount



Protium 3.0 ARGB D5 Cover



Protium 3.0 D5 Pump

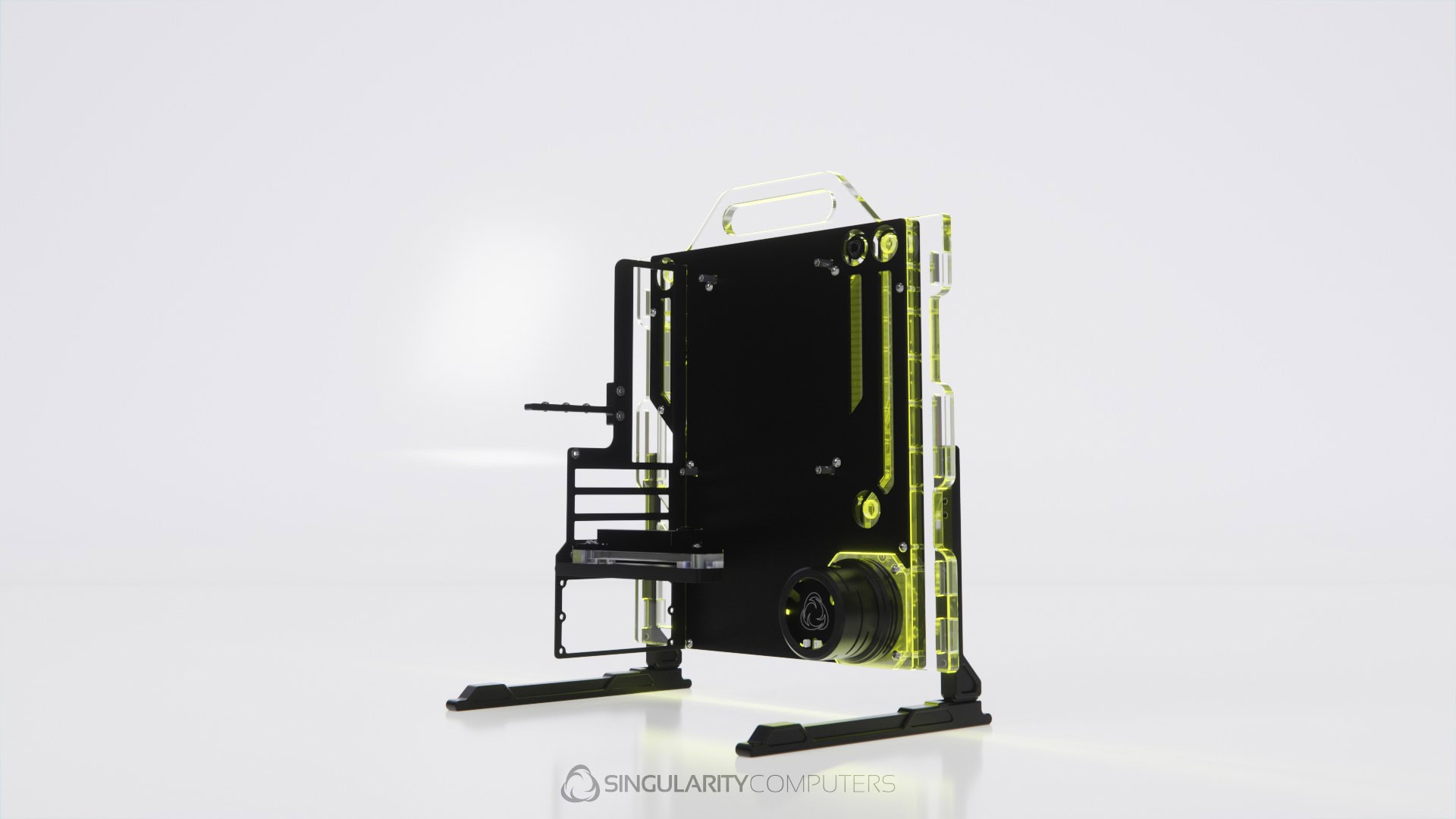

Atlas Stand Set: CNC machined black anodized 6061 aluminum legs and feet for standing the case on a desk if it will not be wall mounted.

VESA Mount:  Powdercoated Steel VESA Mount Plate for wall mounting.

Protium 3.0 ARGB D5 Cover: The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

Protium 3.0 D5 Pump: The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built, and we have never seen one fail in any of our systems. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It is controlled via PWM so you can connect it to your motherboard to manage the RPM.
