Canvas SFF Case D5 Reservoir Distribution Plate

In stock

Order processing time 1-2 days.

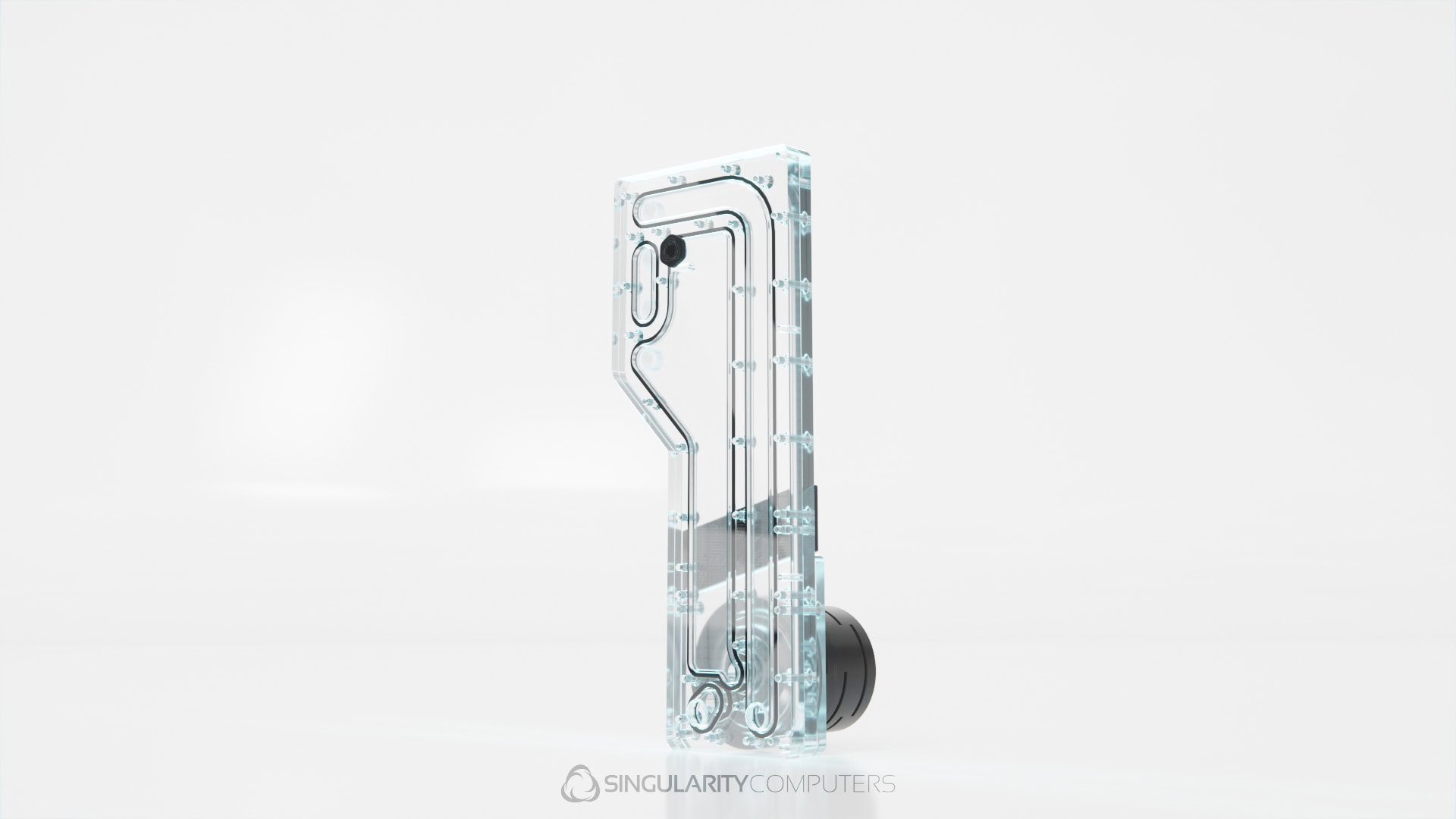

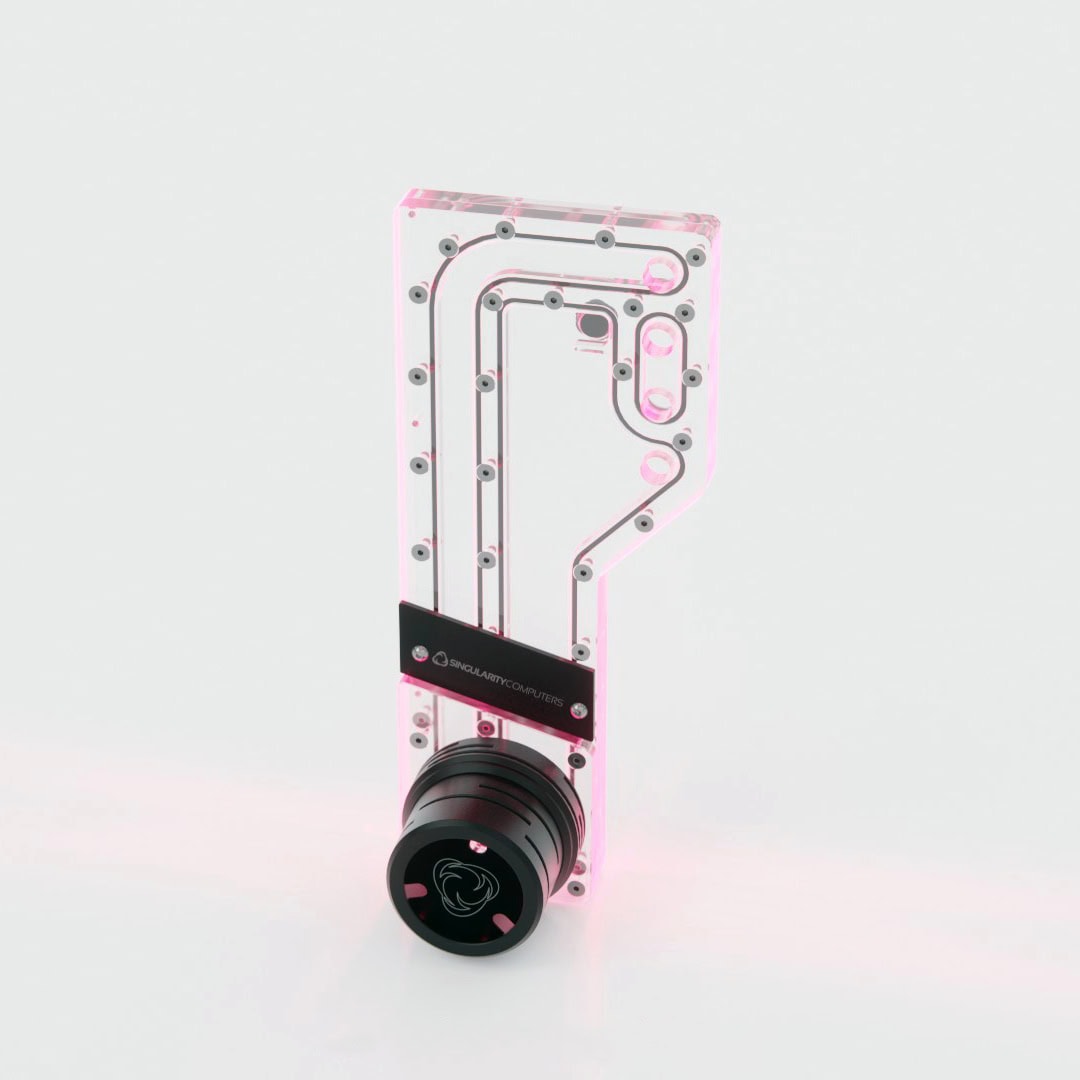

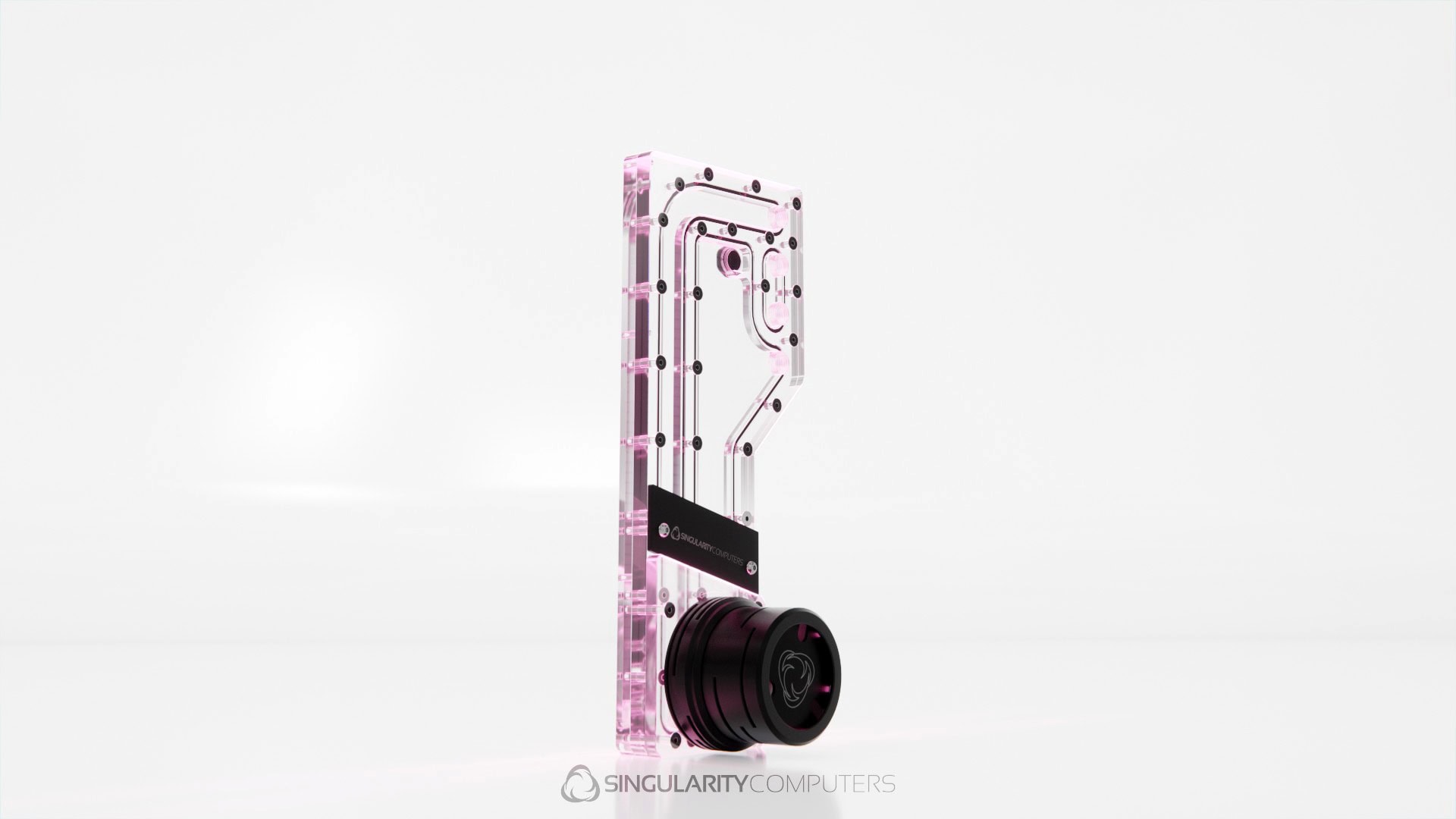

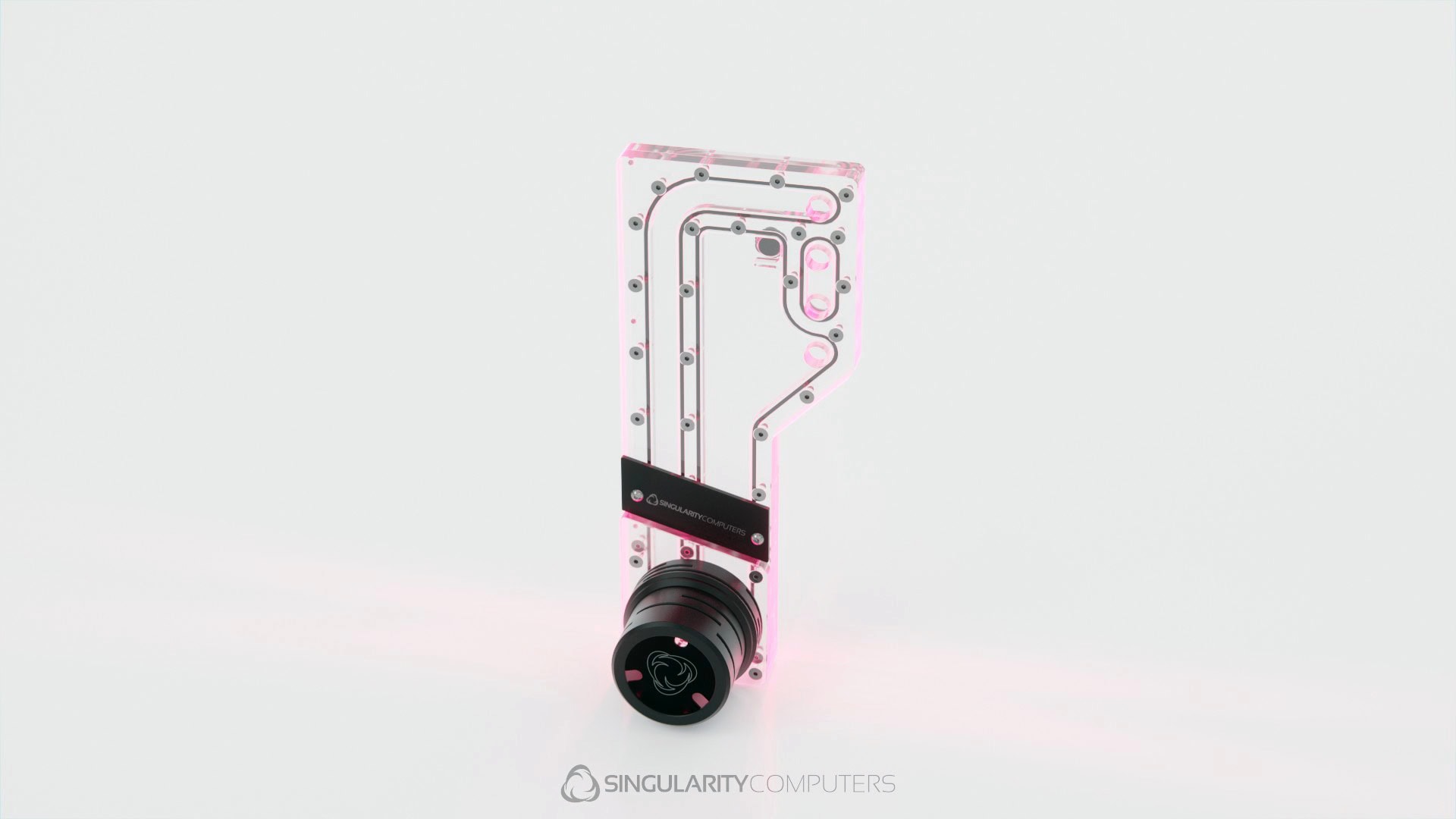

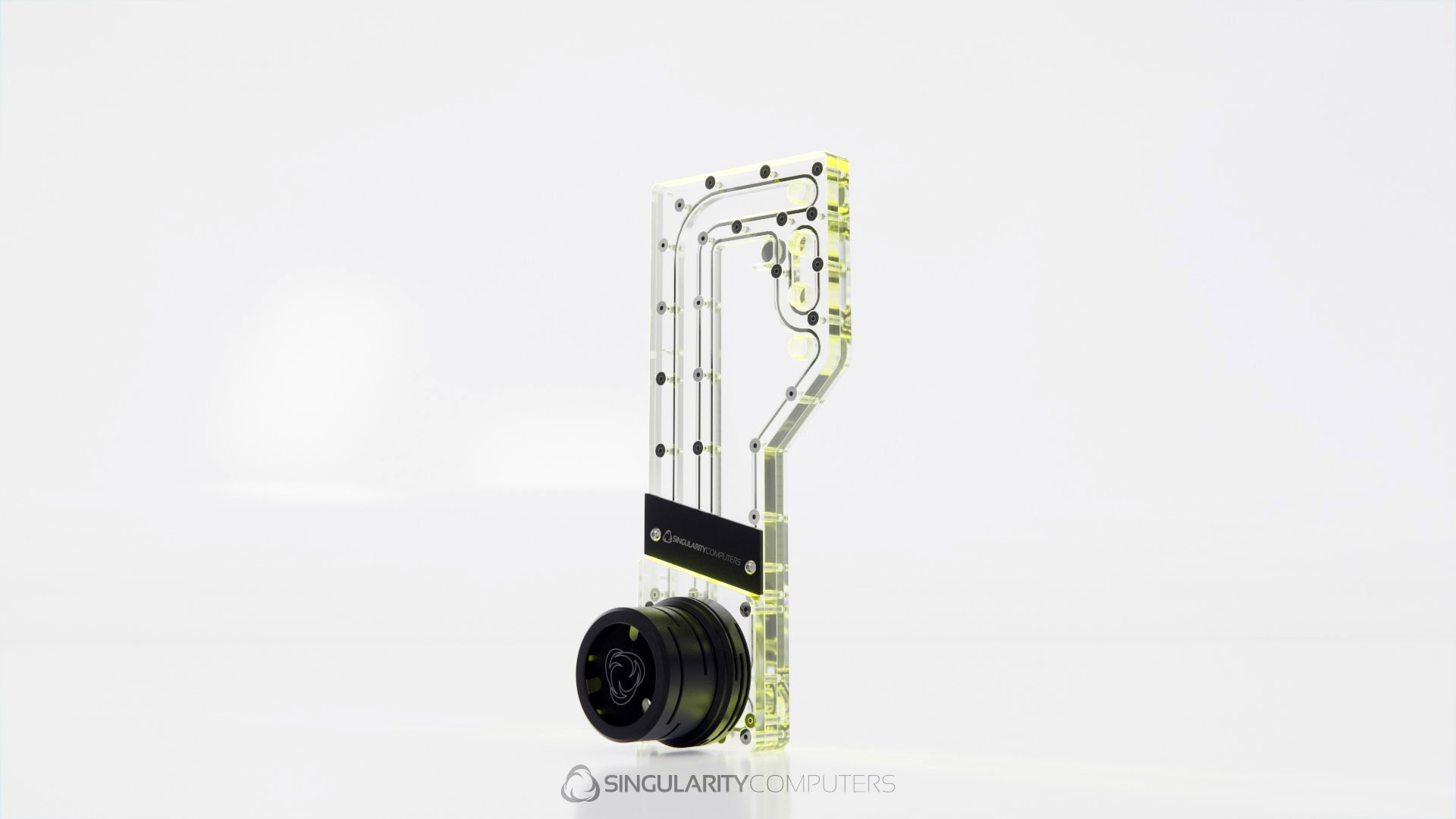

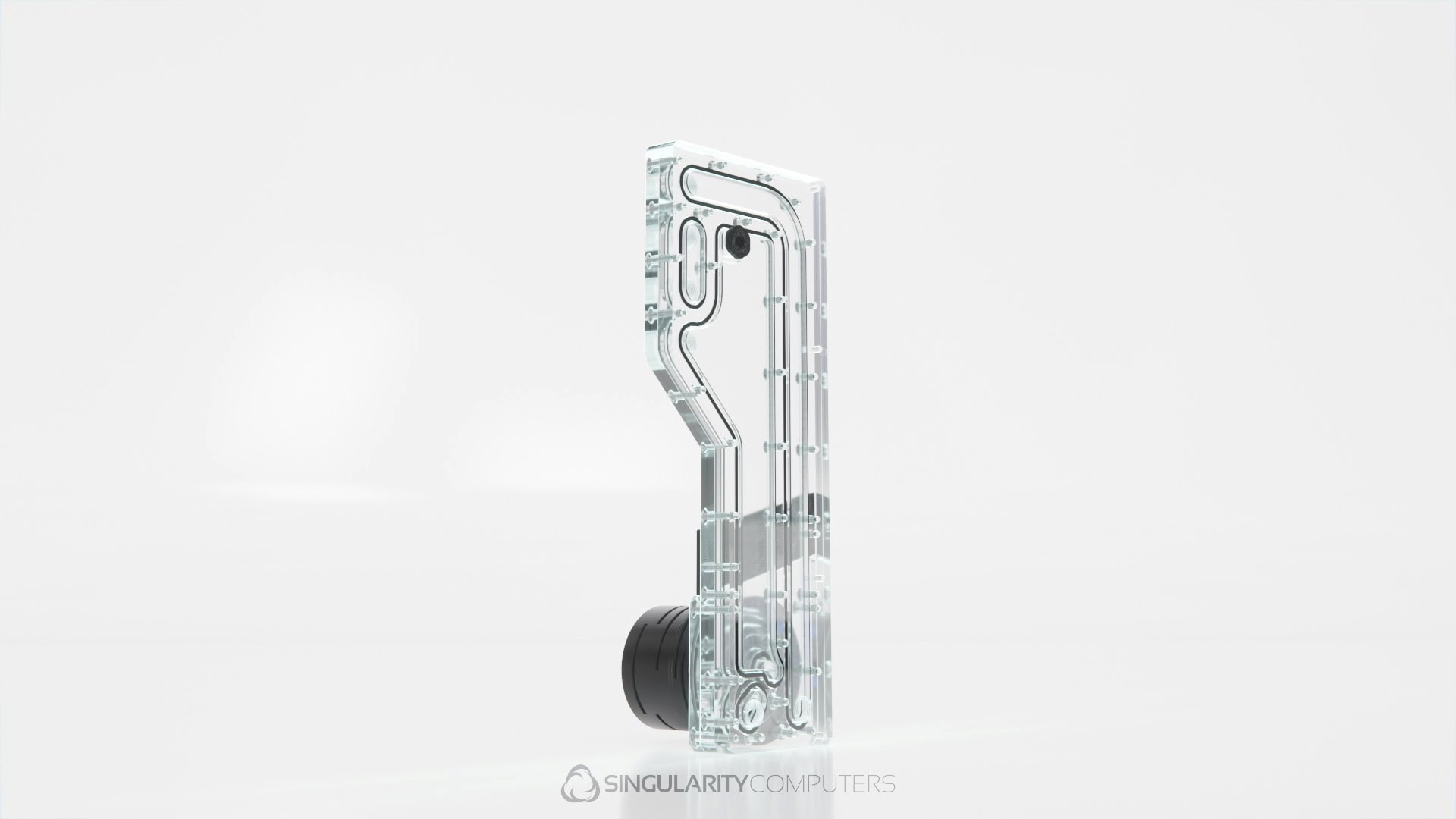

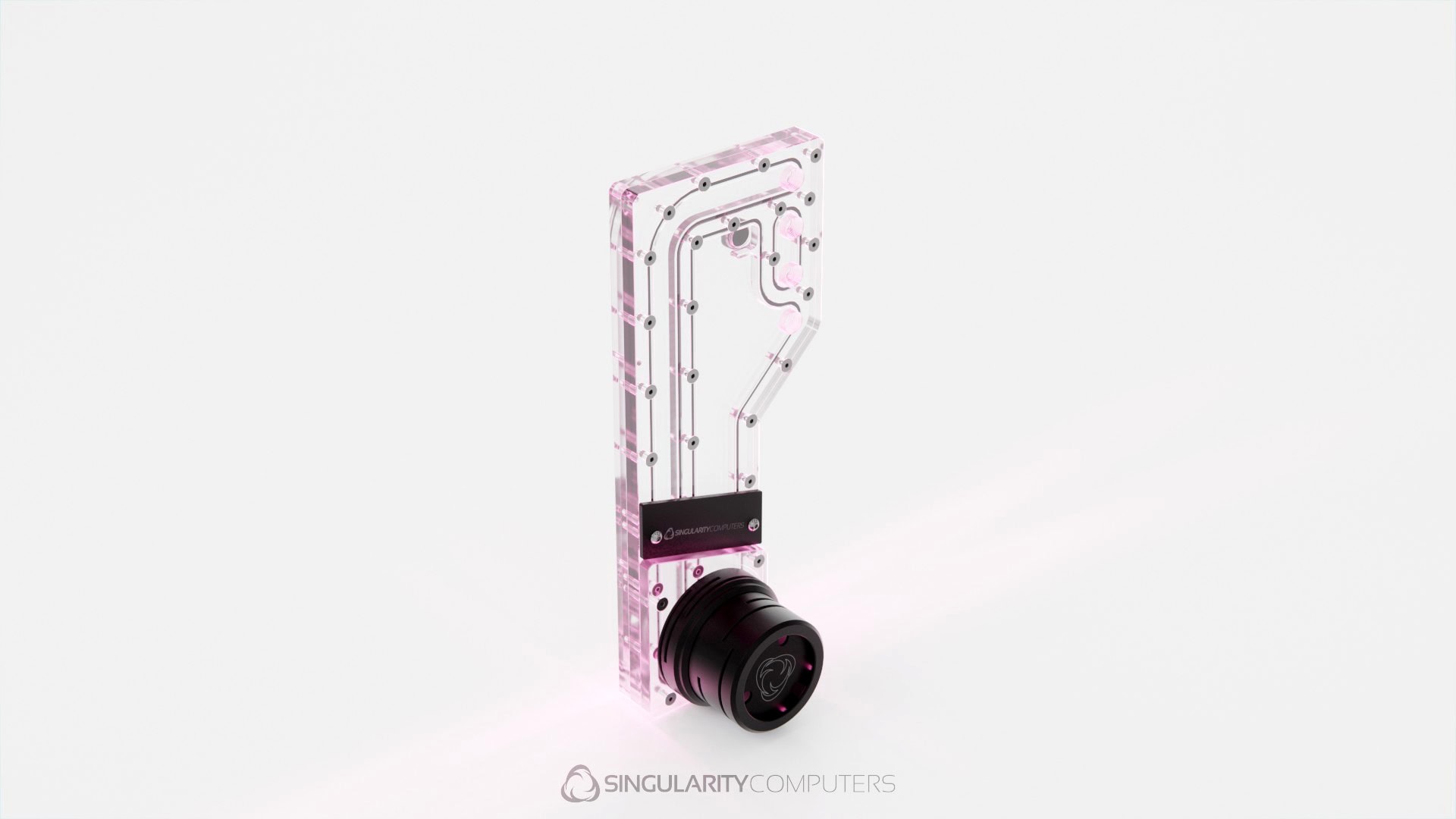

The Canvas SFF Case D5 Reservoir Distribution Plate mounts onto the right side of the Canvas SFF Case.  It has an integrated reservoir, D5 pump top and fill port. It is built from CNC machined clear cast acrylic and uses gaskets instead of O-Rings for increased durability. It is hand assembled with stainless steel fasteners. It has an integrated ARGB LED strip. Select from the different color options below for the Accent Cover.

Pump not included. Compatible with any D5 Pump.

Manuals

US$169.00

Select Acrylic Cover Color/Finish Options
None Satin Black Gloss Black Gloss White Carbon Mirror +US$13.52 Silver Mirror +US$13.52 Gold Mirror +US$13.52 Satin Black

The distribution plate will remain transparent, this colour option is for the covers.
(Satin Black shown in product images, if you select none you will receive Satin Black.)

Select D5 Retention Ring Colour (included)
None Black Silver Black

CNC milled anodized retention ring.

Optional Add-Ons

Enhance your purchase with these recommended extras

Water Cooling

Select D5 Pump Cover Options (optional) USD $39
None Black +US$39.00 Silver +US$39.00

CNC milled anodised pump cover with ARGB lights and Singularity Computers Logo.

D5 Pump (optional) USD $104
None Yes +US$104.00

D5 Pump 1500LPH 3.7m head pressure.

Stop Fitting (optional) USD $4
None Yes +US$4.00

Include stop fittings for all extra ports aside from the inlet and outlet.

Finish & personalisation

Enter text you would like laser etched onto the coloured distribution plate cover you have selected.

  • 1x Canvas SFF Case D5 Reservoir Distribution Plate
    US$169.00

Subtotal excludes shipping & tax

Free shipping over US$2,000 | 30% Off Storewide With Coupon SCA30
  • Made In Australia
  • Lifetime warranty & expert support
Fully secured - SSL CheckoutAccepted payment methods
EAN: 9362188003367 SKU: SC-CAN-DIST Categories: ,

Description

Read More +Read Less − full description
Specifications ▼

Canvas SFF Case D5 Reservoir Distribution Plate.
Canvas SFF Case D5 Reservoir Distribution Plate Cover (select color/finish above).
D5 Pump Cover CNC Machined Aluminum (select color above).
Integrated D5 Pump Top.
Integrated Reservoir.
Fasteners: Stainless Steel.
D5 O-Ring: Silicone Clear.
Gaskets: Silicone Black.
Materials: Cast Acrylic.
Manufacturing Process: CNC Router.
Assembly: Assembled by hand and pressure tested.
Dimensions: L: 240mm x W: 120mm x H: 58mm.
Weight: 0.5kg.
Packaged Dimensions: L: 290mm x W: 170mm x H: 108mm.
Packaged Weight: 0.52kg.

Installation:
Installs onto the right side of the Canvas SFF Case.

Youtube video

Addon Information

Protium 3.0 ARGB D5 Cover



Protium 3.0 D5 Pump

Protium 3.0 ARGB D5 Cover: The SC Protium 3.0 ARGB Pump Cover is built from thick CNC machined anodized aluminum and comes in Black and Silver. It has an integrated ARGB/DRGB PCB which also acts as the rear cover for the D5 Pump. The Pump Cover glows from the back with LEDs around the perimeter of the rear cover. The cover has a 3-piece design for compatibility with all D5 pumps including the Aquacomputer D5 Next.

Protium 3.0 D5 Pump: The Protium 3.0 D5 Pump is compatible with all products which fit a D5 pump. The D5 pump has legendary reliability and performance. We have used it in almost every system we have ever built, and we have never seen one fail in any of our systems. The pump moves 1500LPH of fluid and has a head pressure of 3.7M. It is controlled via PWM so you can connect it to your motherboard to manage the RPM.
